Preinstructional Planning

Objectives

Students will:

• Learn how to use bar graphs to represent, analyze, and generalize data patterns
• Learn that bar graphs show trends in data and how one variable is affected as the other rises or falls
• Learn how to propose and justify predictions based on bar graph analysis

Materials

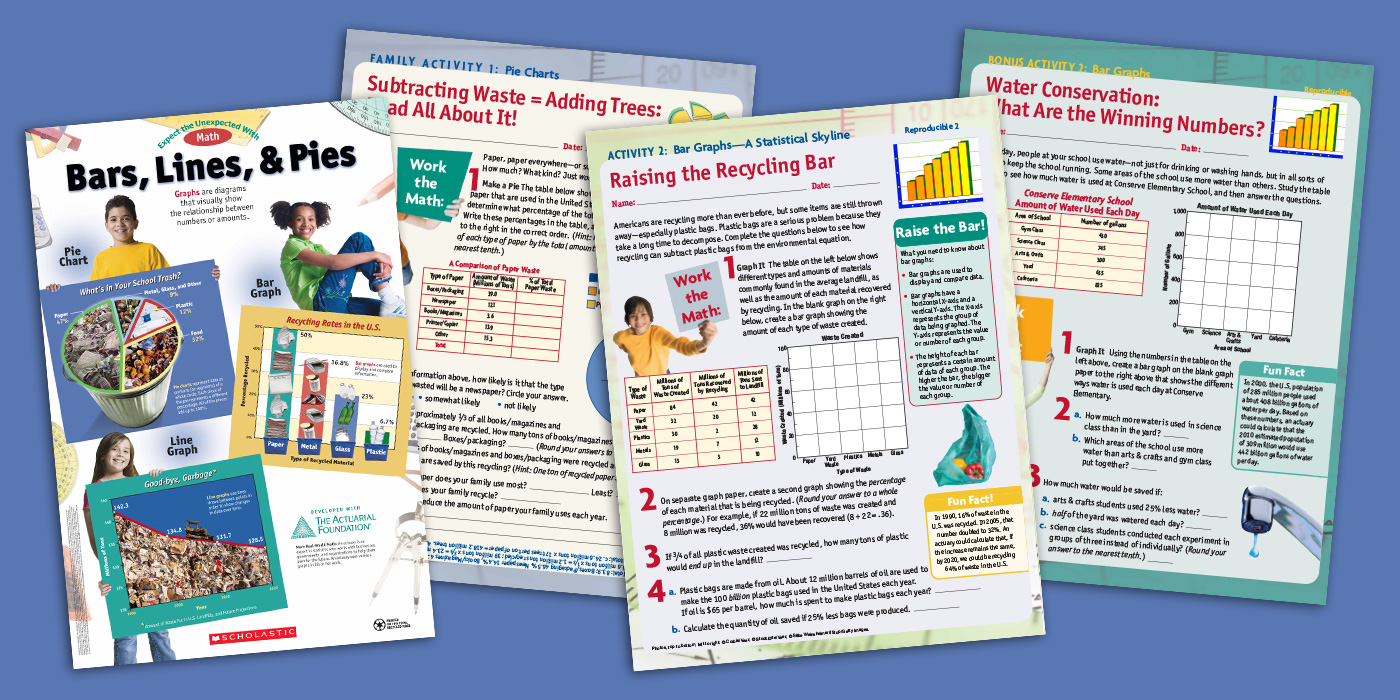

• Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable
• Graph paper
• Rulers
• Colored pencils
• Calculators
• Optional: Bars, Lines, and Pies! Bonus Activity: Water Conservation: What Are the Winning Numbers? printable
• Optional: Bars, Lines, and Pies! Classroom Poster printable
• Optional: Bars, Lines, and Pies! Family Activity: Subtracting Waste = Adding Trees: Read All About It! printable

During Instruction

Set Up

1. Make a class set of the Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable.
2. Optional: Make a class set of the Bars, Lines, and Pies! Bonus Activity: Water Conservation: What Are the Winning Numbers? printable.

3. Optional: Make a class set of the Bars, Lines, and Pies! Family Activity: Subtracting Waste = Adding Trees: Read All About It! printable to send home with students.

Lesson Directions

Step 1: Distribute copies of the Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable. Read the “Raise the Bar” sidebar as a class. Explain to students that they will be learning about bar graphs in this activity. Tell students a bar graph is used to display and compare information. Explain that the height of each bar is proportional to the amount of data the bar represents. The higher the bar the larger the number or amount of data.

Step 2: Draw an X-axis (horizontal) and a Y-axis (vertical) on the board. Label each axis. On the X-axis write the different months of the year and on the Y-axis a sequence of numbers from 0 to 35 at intervals of 5. Use a show of hands to record the number of students born in each month of the year. Use this data to create an example of a bar graph. For example, 3 students were born in January, 7 in February, and so on.

Step 3: Explain that one axis of the graph is where the grouped data (months) is presented while the other is a frequency scale (number of students) showing the quantity of each group.

Step 4: When making a bar graph the data to be presented is used to create an appropriate interval scale. This scale helps people visualize and understand the data. (Point out the interval scale of the bar graph that you created.) Ask students how the graph would change in appearance if the scale were made of smaller intervals or larger intervals. A scale made of smaller intervals is better at illustrating small differences in bar height.

Step 5: Direct students to the questions under "Work the Math" on the Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable. Instruct them to create their first bar graph (Question 1) in the space provided and the second bar graph (Question 2) on a separate sheet of graph paper using the data provided in the table. Remind students to include a title and labels on their graphs and to neatly color in each bar. Once students have finished both graphs, instruct them to answer the remaining questions on the Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable.

Step 6: When students are done, review the answers on the Bars, Lines, and Pies! Worksheet: Raising the Recycling Bar printable and invite students to share their bar graphs with the class.

Step 7: Have students explain differences in the data sets of bar graphs and pie charts. Ask how segment size and bar length perform similar functions in the two types of graphs.

Lesson Extensions

Bonus Activity

Have students continue working with bar graphs by completing the Bars, Lines, and Pies! Bonus Activity: Water Conservation: What Are the Winning Numbers? printable.

Real-World Math

1. Ask students to think of graphs that they have seen in the real world. For what purposes were they used? Have students hunt for examples in books, in magazines, on the Internet, in newspapers, and in business documents.
2. Review with students the definition of actuary on the poster. How can statistics help someone plan for the future? How might an actuary use graphs and math in the following real-world situations?
   • Help a school principal plan a recycling program. How could math and graphs show what the school has used in the past, and how much could be saved in the future by recycling? Use past data to figure out future data (extrapolate), and compare results in a graph.
   • Help the manager of a city plan for a second landfill. How much space would be needed for the new landfill? Use past data from the first landfill, as well as data that reflects current use and extrapolate for future data. Display the findings in a graph.
   • Help the manager of a company figure out how much money could be saved by recycling over a period of 10 years. A line graph would reflect the increase of money saved over a period of time.

Home Connections

Have students complete the Bars, Lines, and Pies! Family Activity: Subtracting Waste = Adding Trees: Read All About It! printable at home.
